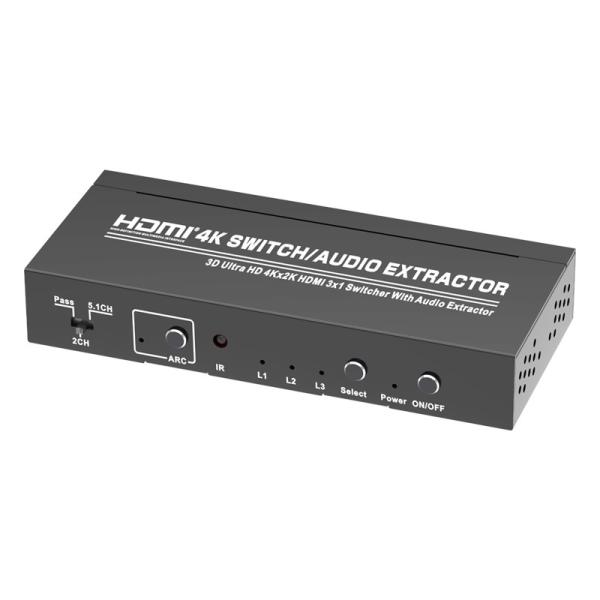

HDMI 4 X 1 , EDID , 3D Switcher
DESCRIPTION
The device is one multiple ports HDMI Audio Extractor with support of ARC,3D and 4KX2K,which can switch easily multiple HD Sources or one MHL smart sources to one HD Display. Also any of the input sources support the audio extract by the SPDIF and LR audio output channel. The Switcher supports ARC function that can do TV audio return back to the AV receiver.
TECHNICAL PARAMETER IN DETAIL
| Video and Audio | |
| HDMI resolution | Ultra HD 3D 4Kx2K@50/60Hz ( max) |
| Source Port Connector | 36-bit Deep Color all channels maximum |
| Audio output | HDMI pass-through; Up to 7.1CH; SPDIF output up to 5.1 ch; 3.5mm stereo output audio . |
| Max bandwidth per channel | 300MHz |
| Max baud rate per display | 9.95Gbps |
| Input/Output TMDS signal | 0.5~1.5V p-p(TTL) |
| Input/Output DDC signal | 5V p-p(TTL) |
| Input cable distance | ≤50ft/15m 24 AWG HDMI high speed Cable at1080P@24bit 60Hz |
| Output cable distance | ≤50ft/15m 24 AWG HDMI high speed Cable at1080P@24bit 60Hz |
| Environmental | |
| Operating Temperature range | 5°F to 131°F / -15°C to 55°C |
| Operating Humidity range | 5% to 90% RH(No Condensation) |
| Mechanical | |
| Dimension(LxWxH) | 149.5x64x25(mm) |
| Weight | 290g |
| Power Requirement | |
| Power Consumption(max) | 3.5 Watts |
| Operation Temperature | 0℃ TO 70℃ |
| Working Voltage | DC 5V |
| Power Adapter | 5V 1A |
FEATURES
1. Input: HDMI x 4(HDMI/MHL 1 port supports MHL).
2. Output: HDMI x 1, Toslink /SPDIF x 1, AUDIO x 1.
3. Supports Ultra HD 4Kx2K@25/30Hz.
4. Supports Full HD.
5. Supports 3D.
6. Supports HDCP pass-through.
PANEL DESCRIPTIONS
Product diagram
1. Power indicator.
2. IR: Infrared receiver.
3. 1, 2, 3,4: HDMI input port indication LED for which input port is active.
4. ARC:ARC audio return indicator.
5. SPDIF:SPDIF/LR audio ON /OF indication LED.
6. PASS2.0CH5.1CH:Different audio mode indication LED.Note:Pass
LED: Audio according HDMI sink .All audio output is active, Such as
HDMI ,Toslink ,L/R; 2.0 LED :2.0 PCM audio mode indication , All audio
output is active.5.1ch LED: 5.1 Dolby ,DTS or PCM audio mode. only
Toslink and HDMI audio is active.
7. Switch: HDMI input switch button.
8. ARC: Audio return button.
9. Spdif/LR: SPDIF/LR audio output on/off button.
10. AUDIO: Audio mode switch button.
11. Power ON/OFF.
12. MHL/HDMI 1~HDMI 4: HDMI Input Port.
13. OUTPUT: HDMI Output Port.
14. SPDIF: SPDIF Optical Digital Output Port.
15. AUDIO: L/R Audio Output Port.
16. DC/5V: Power Input Port.
HOW IT WORKS
1. Use a HDMI cable to connect a HD source to the HDMI Input Port.
2. Use a HDMI cable to connect a HD display to the HDMI Output Port.
3. For audio connection, choose one from the following options.
a.To use HDMI pass-through, use the HDMI cable from step 2 to
connect audio receiver to the HDMI Output Port. Your audio
receiver will have to output video signal to your HD display.
b.To use Toslink, use a Toslink cable to connect to audio equipment.
(Note: Toslink does not support Dolby Digital Plus. Please change
the input source's audio output to a different setting, if needed.)
c.To use Coaxial, use a Coaxial cable to connect to Stereo audio
equipment.
4. Connect the power adapter.
5. Note: If using Toslink cable, please make sure the rubber protective
tip cover has already been removed from both ends before connecting
them to devices.
